Description

Features

  • Large capacities of up to 180mm in depth and 125mm at
    45º
  • Indexable mitre angle setting
  • Grooves on table surface for cutting compound angles
  • Fast-action work clamp
  • Repeat length stop
  • Adjustable depth stop
  • Supplied with rear extender

Description

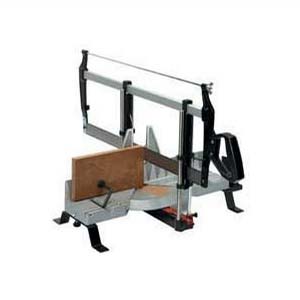

The Nobex Champion has the biggest capacities of any mitre saw - up to 180mm in depth and 125mm at 45º. Accurate to 0.08 of a degree. Features include indexable mitre angle setting, grooves on the table surface for cutting compound angles, a fast-action work clamp which operates on angled as well as straight surfaces, a repeat length stop, an adjustable depth stop and a device for holding the saw clear of the table whilst the work is positioned. Included is a rear fence extender which gives improved support to tall workpieces. A genuine professional's tool, definitely worth the expenditure being supplied with an 18tpi blade. Swedish made



Data

Specification for Nobex Champion Mitre Saw
Blade Length 630mm (25")
Blade Width 45mm
Max.Cap. @ 45 125mm (5")
Max.Cap. @ 90 200mm
Max.Cutting Height 180mm (7.1/8")
Model Champion
Table Size 500 x 125mm



Options and Pricing
Product Code Product Description
610314 Nobex 180 Champion Mitre Saw
474870 16tpi Japanese Tooth (Ikeda) Blade for Nobex 180 Mitre Saw
